Send InquiryEGRIP Universal Cross Pole Rectangular Electro Magnetic Chuck
Price 85000 INR/ Piece
MOQ : 1 Piece
EGRIP Universal Cross Pole Rectangular Electro Magnetic Chuck Specification
- Application
- Industrial
- Voltage
- 110 Volt (v)
- Magnet Category
- Permanent Magnets
- Shape
- Rectangle
- Size Range
- 750x300x75mm (LxWxH)
- Color
- Silver
EGRIP Universal Cross Pole Rectangular Electro Magnetic Chuck Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 10 Pieces Per Month
- Delivery Time
- 5-7 Days
- Main Domestic Market
- All India
About EGRIP Universal Cross Pole Rectangular Electro Magnetic Chuck
EGRIP Universal Cross Pole Rectangular Electro Magnetic Chuck is a cutting-edge solution designed for industrial applications requiring reliable and precise magnetic clamping. With a rectangular configuration measuring 750x300x75mm (LxWxH), this chuck is compact yet robust, ensuring efficient operation across various processes. It features permanent magnets and operates at 110 Volts, offering excellent energy efficiency and sustainable performance. The durable silver finish enhances its longevity while providing an aesthetically pleasing appearance. EGRIPs cross-pole design assures superior grip and stability, making it ideal for machining, grinding, and other heavy-duty operations. Its universal usability allows seamless integration into diverse industrial setups.
- Single piece body construction for high precision.
- 100% leak proof construction.
- Lowest height electro magnetic chucks.
- Electro Magnetic Chuck weight less by 10%-20%, hence increases the durability of grinder itself.
- Less than 5 deg C temperature change after 1 hour working on these Electro Magnetic Chucks.
- Minimum power consumption.
- Possibility to combine several Electro Magnetic Chucks for a large uninterrupted surface.
- Due to low height of these Electro Magnetic Chucks, there is more space between the grinding wheel and the chuck, which enables the processing of larger work pieces.
- Electro Magnetic Chucks can be easily fitted to the surface grinder
| Art No. | W | L | Pole Pitch | H | Controler |
| 12106.02 | 300 | 750 | 19 (5+0.5+5+0.5+5+3) | 75 | 92101.01 |
| 12106.03 | 300 | 900 | 19 (5+0.5+5+0.5+5+3) | 75 | 92101.01 |
| 12106.04 | 300 | 1000 | 19 (5+0.5+5+0.5+5+3) | 75 | 92101.01 |
| 12106.05 | 300 | 1200 | 19 (5+0.5+5+0.5+5+3) | 75 | 92101.01 |
| 12106.06 | 300 | 1500 | 19 (5+0.5+5+0.5+5+3) | 75 | 92101.01 |
| 12106.01 | 300 | 600 | 19 (5+0.5+5+0.5+5+3) | 75 | 92101.01 |
| 12106.10 | 400 | 1200 | 19 (5+0.5+5+0.5+5+3) | 80 | 92101.01 |
| 12106.07 | 400 | 600 | 19 (5+0.5+5+0.5+5+3) | 75 | 92101.01 |
| 12106.09 | 400 | 1000 | 19 (5+0.5+5+0.5+5+3) | 75 | 92101.01 |
| 12106.17 | 400 | 800 | 19 (5+0.5+5+0.5+5+3) | 75 | 92101.01 |
| 12106.08 | 400 | 900 | 19 (5+0.5+5+0.5+5+3) | 75 | 92101.01 |
| 12106.30 | 500 | 800 | 19 (5+0.5+5+0.5+5+3) | 80 | 92101.01 |
| 12106.11 | 500 | 750 | 19 (5+0.5+5+0.5+5+3) | 80 | 92101.01 |
| 12106.12 | 500 | 1000 | 19 (5+0.5+5+0.5+5+3) | 80 | 92101.01 |
| 12106.13 | 500 | 1500 | 19 (5+0.5+5+0.5+5+3) | 80 | 92101.02 |
| 12106.14 | 500 | 2000 | 19 (5+0.5+5+0.5+5+3) | 80 | 92101.02 |
| 12106.15 | 600 | 750 | 19 (5+0.5+5+0.5+5+3) | 80 | 92101.02 |
| 12106.16 | 600 | 1000 | 19 (5+0.5+5+0.5+5+3) | 80 | 92101.02 |
FAQs of EGRIP Universal Cross Pole Rectangular Electro Magnetic Chuck:
Q: What is the key feature of the EGRIP Universal Cross Pole Rectangular Electro Magnetic Chuck?
A: Its key feature is the cross-pole design, which provides superior gripping stability for enhanced performance in industrial applications.Q: What material does the chuck use to generate magnetic clamping?
A: The chuck utilizes permanent magnets to deliver efficient and reliable magnetic clamping.Q: What voltage does the chuck operate on?
A: It operates at a voltage of 110 Volts, making it suitable for standard industrial setups.Q: What are the dimensions of this magnetic chuck?
A: The dimensions are 750x300x75mm (Length x Width x Height).Q: What industries are best suited for this product?
A: It is ideal for machining, grinding, and other applications requiring precise and robust magnetic clamping in industrial environments.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Rectangular Magnetic Chucks Category
MICROSINES Single Angle Permanent Magnetic Sine Table
Price 400000.0 INR / Piece
Minimum Order Quantity : 1 Number
Color : Silver
Size Range : 450x150x137
Magnet Category : Permanent Magnets
Shape : Rectangle
PERMAMAX Universal Pole Rectangular Magnetic Chuck
Price 50000.0 INR / Number
Minimum Order Quantity : 1 Number
Color : Grey
Size Range : 215
Magnet Category : Permanent Magnets
Shape : Rectangle

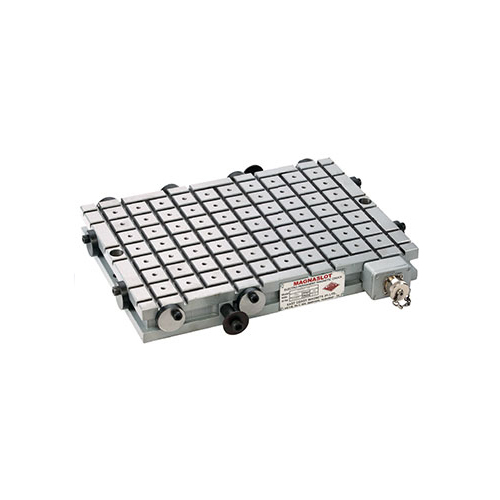

MAGNASLOT-50 Square Pole Rectangular Magnetic Chuck 50mm
Price 140000.0 INR / Number
Minimum Order Quantity : 1 Number
Color : GREY
Size Range : 400X600
Magnet Category : Electromagnets

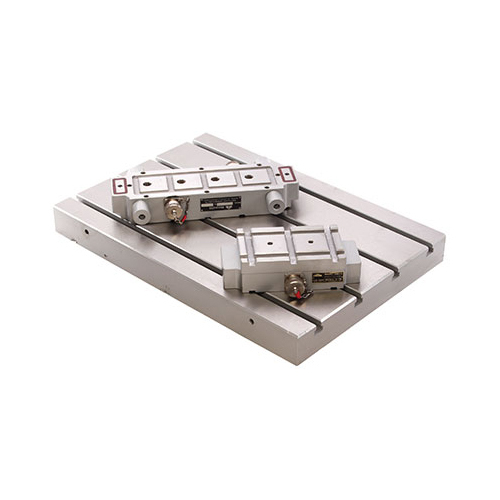

Double MAG Self Clamping Magnet
