EGRIP Universal Cross Pole Rectangular Magnetic Chuck

Name: EGRIP Universal Cross Pole Rectangular Magnetic Chuck
Brand: Magnet Revolution Private Limited
Price: 80000.0 INR
Availability: InStock

Price 80000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

EGRIP Universal Cross Pole Rectangular Magnetic Chuck Specification

Power Supply
Electric

Voltage
110-215 Volt (v)

Product Type
Magnets

Magnet Category
Electro Permanent Magnetic Chuck

Color
Silver

EGRIP Universal Cross Pole Rectangular Magnetic Chuck Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
4 Per Month

Delivery Time
6 Week

Sample Available
No

Main Export Market(s)
Middle East, Western Europe, Eastern Europe, Central America, North America, South America, Asia, Australia

Main Domestic Market
All India

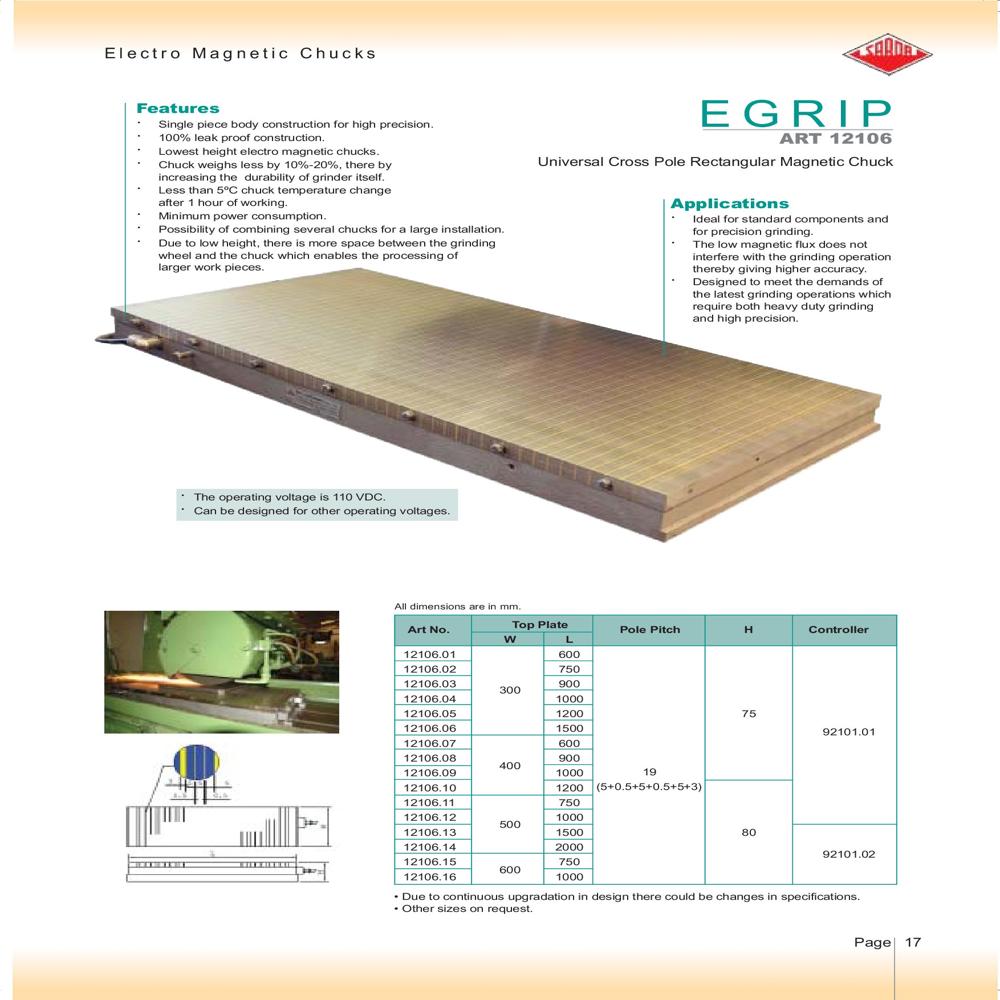

About EGRIP Universal Cross Pole Rectangular Magnetic Chuck

Most ideal for standard components and precision grinding single piece body construction for high precision low height electro magnetic chucks minimum power consumption electro magnetic chuck can be easily fitted to the surface grinder.

Single piece body construction for high precision.
100% leak proof construction.
Lowest height electro magnetic chucks.
Electro Magnetic Chuck weight less by 10%-20%, hence increases the durability of grinder itself.
Less than 5degC temperature change after 1 hour working on these Electro Magnetic Chucks.
Minimum power consumption.
Possibility to combine several Electro Magnetic Chucks for a large uninterrupted surface.
Due to low height of these Electro Magnetic Chucks, there is more space between the grinding wheel and the chuck, which enables the processing of larger work pieces.
Electro Magnetic Chucks can be easily fitted to the surface grinder

Art No.	W	L	Pole Pitch	H	Controler
12106.02	300	750	19 (5+0.5+5+0.5+5+3)	75	92101.01
12106.03	300	900	19 (5+0.5+5+0.5+5+3)	75	92101.01
12106.04	300	1000	19 (5+0.5+5+0.5+5+3)	75	92101.01
12106.05	300	1200	19 (5+0.5+5+0.5+5+3)	75	92101.01
12106.06	300	1500	19 (5+0.5+5+0.5+5+3)	75	92101.01
12106.01	300	600	19 (5+0.5+5+0.5+5+3)	75	92101.01
12106.10	400	1200	19 (5+0.5+5+0.5+5+3)	80	92101.01
12106.07	400	600	19 (5+0.5+5+0.5+5+3)	75	92101.01
12106.09	400	1000	19 (5+0.5+5+0.5+5+3)	75	92101.01
12106.17	400	800	19 (5+0.5+5+0.5+5+3)	75	92101.01
12106.08	400	900	19 (5+0.5+5+0.5+5+3)	75	92101.01
12106.30	500	800	19 (5+0.5+5+0.5+5+3)	80	92101.01
12106.11	500	750	19 (5+0.5+5+0.5+5+3)	80	92101.01
12106.12	500	1000	19 (5+0.5+5+0.5+5+3)	80	92101.01
12106.13	500	1500	19 (5+0.5+5+0.5+5+3)	80	92101.02
12106.14	500	2000	19 (5+0.5+5+0.5+5+3)	80	92101.02
12106.15	600	750	19 (5+0.5+5+0.5+5+3)	80	92101.02
12106.16	600	1000	19 (5+0.5+5+0.5+5+3)	80	92101.02
