MAGNASLOT-75 Square Pole Rectangular Magnetic Chuck 75mm

Name: MAGNASLOT-75 Square Pole Rectangular Magnetic Chuck 75mm
Brand: Magnet Revolution Private Limited
Price: 300000.0 INR
Availability: InStock

Price 300000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

MAGNASLOT-75 Square Pole Rectangular Magnetic Chuck 75mm Specification

Application
For Surface Grinding, Milling and Precision Machining

Composite
Yes

Material
Special Alloy Steel with Brass and Steel Top Plate

Surface Finish
Precision Ground Top Plate

Power Supply
Electric

Magnet Grade
Industrial Grade

Product Type
MAGNASLOT-75 Square Pole Rectangular Magnetic Chuck

Magnet Category
Industrial Magnetic Chuck

Magnet Type
Square Pole Electromagnetic

Shape
Rectangular

Size Range
Standard size - 75mm width, Length as per model

Color
Metallic Grey/Black

Usage & Applications
Surface grinding, milling, precision machining of ferrous material

Made in
India

Accuracy
Parallelism within 0.005mm over entire surface

Top Plate Thickness
12-15mm (approx.)

Control
Remote/Integrated Controller (On-Off Switch)

Pole Pitch
75mm Square Poles

Insulation Resistance
Greater than 100 Meg Ohm at 500 V DC

Residual Magnetism
Very Low (Workpiece release is easy after switch-off)

Design Standard
Meets IS/ISO Industry Standards

Holding Force
up to 1500 kgf (depending on chuck size)

Mounting
T-Slot or Bolt Mounting options available

Cable Entry
Side or Rear as per model

Operating Temperature
Max. 80C

Service Life
Long Service Life with Minimal Maintenance

MAGNASLOT-75 Square Pole Rectangular Magnetic Chuck 75mm Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Main Export Market(s)
Central America, Eastern Europe, Asia, Australia, Middle East, Western Europe, North America, South America

Main Domestic Market
All India

About MAGNASLOT-75 Square Pole Rectangular Magnetic Chuck 75mm

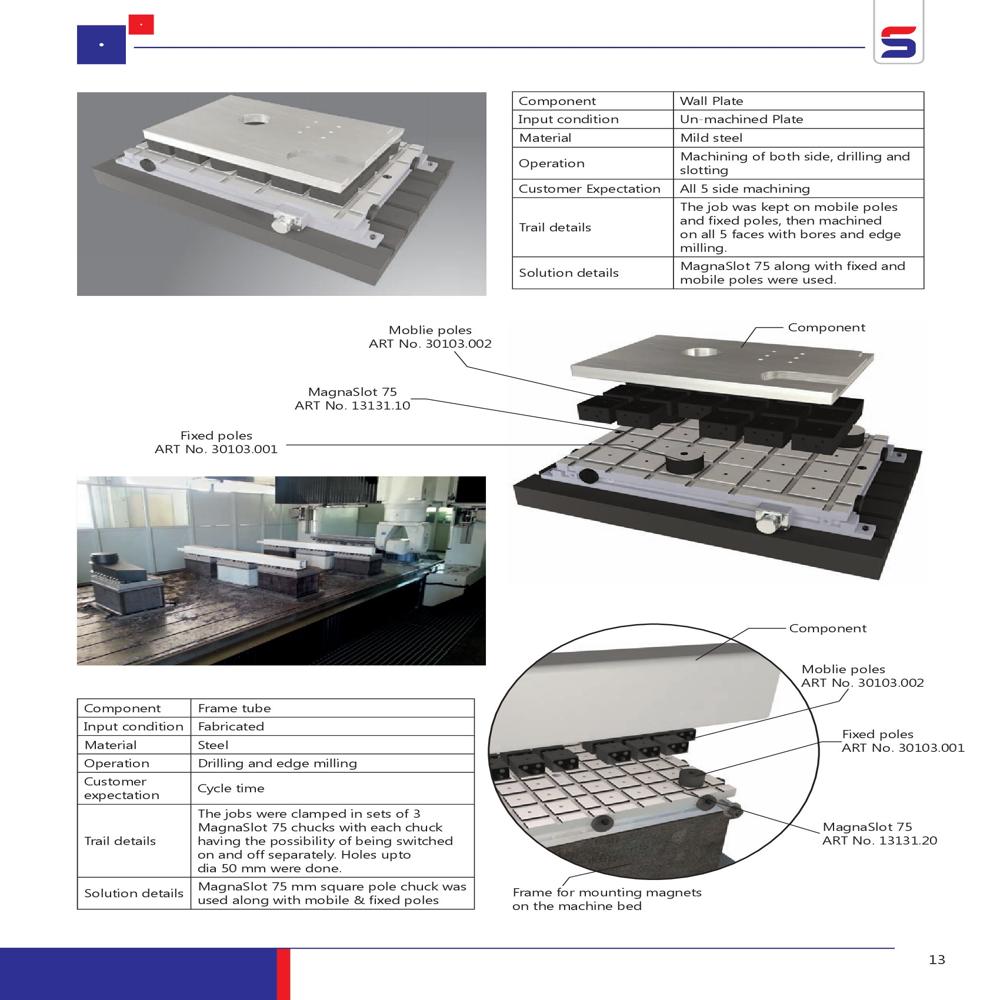

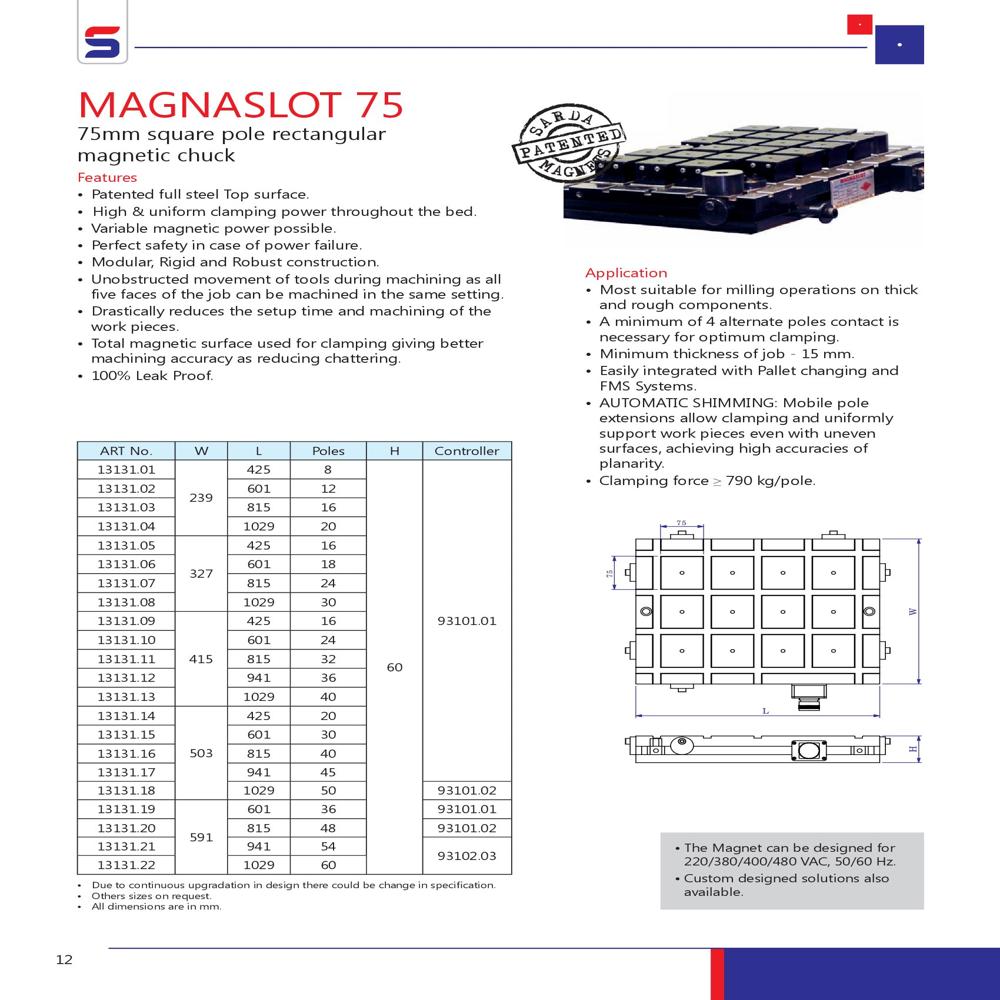

Magnaslot 75 square pole rectangular chucks patent full steel top plate surface most suitable for milling operation on thick and rough components easly integrated with pallet changing and FMS systems drastically reduces the setup time and machining of work piece 100 % leakage proof

Exceptional Holding Power and Precision

The MAGNASLOT-75 delivers formidable clamping strength-up to 80 N/cm2-using industrial-grade square pole electromagnetic technology. Its top plate, meticulously ground and maintained within a mere 0.005mm parallelism deviation, ensures precise and consistent results for challenging machining and grinding tasks. This accuracy supports high-quality finishes and efficient, repeatable operations in demanding environments.

User-Friendly Operation and Versatility

Designed for operator convenience, the chuck offers easy On-Off control via remote or integrated switches. Thanks to minimal residual magnetism, workpieces can be swiftly released post-operation. Flexible mounting options, including T-slot or bolt mounts and side/rear cable entry, accommodate varying workspace needs, while compatibility with both 110V and 220V power supplies ensures global usability.

Built for Durability and Industrial Standards

Crafted from special alloy steel with a composite brass and steel top plate, the MAGNASLOT-75 promises long service life with minimal maintenance. The design meets strict IS/ISO industry specifications, ensuring reliability even under continuous operation up to 80C. Its robust construction and insulation resistance exceeding 100 Meg Ohm at 500 V DC suit it perfectly for heavy-duty, industrial settings.

Magnetic power above 100 MT/m2
Magnetic Pole Size: 75 x 75 mm.
Perfect safety in case of power failure. No electricity needed to Keep the Electro Permanent Magnetic Chuck ON.
Unobstructed movement of cutters during machining.
Variable magnetic power.
Drastically reduces set up Time by using magnets.
Achieves best machining accuracy.
Uniform clamping over entire area, such no chattering of tools there by improving finish and tool life.
Reduce Clamping/ De-clamping time in CNC machines drastically resulting in increased production

Art No.	W	L	No Of Poles	H	Controller
13131.02	250	600	12	55	93101.01
13131.03	250	800	16	55	93101.01
13131.04	250	1000	20	55	93101.01
13131.01	250	400	8	55	93101.01
13131.05	300	400	12	55	93101.01
13131.06	300	600	18	55	93101.01
13131.07	300	800	24	55	93101.01
13131.08	300	1000	30	55	93101.01
13131.12	400	1000	40	55	93101.01
13131.09	400	400	16	55	93101.01
13131.10	400	600	24	55	93101.01
13131.11	400	800	32	55	93101.01
13131.37	400	1200	48	55	93101.01
13131.38	400	1400	56	55	93101.03
13131.43	500	1500	70	55	93101.03
13131.14	500	600	30	55	93101.01
13131.15	500	800	40	55	93101.01
13131.16	500	1000	50	55	93101.01
13131.13	500	400	20	55	93101.01
13131.17	600	600	36	55	93101.01
13131.18	600	800	48	55	93101.01
13131.19	600	1000	60	55	93101.03
13131.23	600	1200	72	55	93101.03
13131.36	600	1500	84	55	93101.03

FAQ's of MAGNASLOT-75 Square Pole Rectangular Magnetic Chuck 75mm:

Q: How does the MAGNASLOT-75 Square Pole Magnetic Chuck simplify workpiece handling?

A: This magnetic chuck uses square pole electromagnetic technology, offering a very low level of residual magnetism after switch-off. This design enables the easy and efficient release of your workpiece, enhancing workflow during surface grinding, milling, or precision machining tasks.

Q: What applications are best suited for this magnetic chuck?

A: The MAGNASLOT-75 is engineered for industrial use in surface grinding, milling, and precision machining of ferrous metals. Its high clamping force and precision-ground surface make it ideal for any operation requiring strong, consistent workholding and minimal material movement.

Q: When should T-slot versus bolt mounting be selected?

A: T-slot mounting is best for machines that allow quick adjustment or repositioning, while bolt mounting provides a more permanent, secure installation. The choice depends on your machinery setup and the frequency with which you need to change the chuck's position.

Q: Where is the cable entry on the MAGNASLOT-75?

A: Depending on the chosen model, the cable entry is available on either the side or the rear of the magnetic chuck, providing installation flexibility to suit varying workspace layouts and machinery requirements.

Q: What is the process for switching the chuck on and off?

A: The chuck is controlled through either a remote or integrated on-off switch, depending on the selected model. Switching off the chuck immediately reduces residual magnetism, allowing the workpiece to be removed quickly and safely.

Q: What are the key benefits of choosing this magnetic chuck?

A: The MAGNASLOT-75 offers powerful clamping, remarkable accuracy, extended service life, and ease of use. It reduces set-up time, minimizes manual workpiece handling, and delivers reliable, high-precision performance for heavy-duty industrial manufacturing environments.
