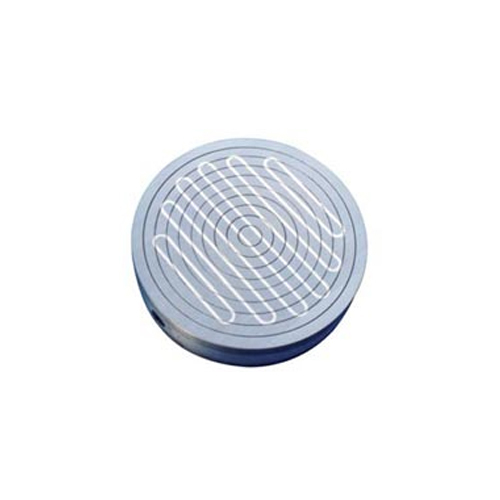

PERMAMAX-R Universal Pole Round Magnetic Chuck

Price 20000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PERMAMAX-R Universal Pole Round Magnetic Chuck Specification

Surface Finish
Fine Ground Surface for Precision Work

Composite
Metal Alloy Body with Permanent Magnets

Magnet Grade
Standard Industrial Grade

Power Supply
Manual (Mechanical Lever)

Power
Manual Actuation (No Electric Power)

Application
Precision Surface Grinding, Turning, Milling on Grinding Machines and Lathes

Voltage
No External Voltage Required (Permanent Magnet)

Material
High Quality Steel Top Plate with Brass/Metal Inserts

Product Type
Round Magnetic Chuck

Magnet Category
Industrial Magnetic Chuck

Magnet Type
Permanent Magnet (NdFeB/Ferrite)

Shape
Round/Circular

Size Range
150mm to 400mm Diameter (Standard)

Weight
Varies by Diameter (e.g., ~15-40 kg)

Color
Silver Metallic with Red/Black Markings

Usage & Applications
For Holding Ferrous Components Firmly during Machining, Grinding, and Turning Operations

Capacity
Up to 250 kg Holding Force

Clamping Force
Approximately 80-100 N/cm²

Maintenance
Minimal, Regular Wiping & Inspection Recommended

Actuation
On-Off Switch Lever Mechanism

Pole Pitch
6+1 mm (Radial Universal Poles), Suitable for Small to Large Components

Waterproof Feature
Yes, Suitable for Wet Grinding

Top Plate Construction
Solid Metal with Radial/Universal Pole Layout for Maximum Flux Distribution

Operating Temperature
Up to 80°C (Continuous Duty)

Accessories Included
Operating Handle, Side Clamps (Optional)

PERMAMAX-R Universal Pole Round Magnetic Chuck Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Supply Ability
10 Pieces Per Month

Delivery Time
7 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

About PERMAMAX-R Universal Pole Round Magnetic Chuck

These are powerful and most suitable for medium and big components for grinding and light turning operation steel and brass laminated top plate full extended pole with minimum loss of work area these chucks are made high power permanent magnets.

Robust Magnetic Clamping Solution

Engineered for precision, the PERMAMAX-R Universal Pole Round Magnetic Chuck features a radial/universal pole layout with a solid metal construction. Its advanced design guarantees strong magnetic holding power for components of varying sizes, making it indispensable for engineers and machining professionals.

Superior Performance and Safety

With a clamping force up to 100 N/cm2 and a fine ground steel top plate, this magnetic chuck ensures both safety and accuracy during operations. Its waterproof capability supports wet grinding, while the permanent magnet design eliminates the need for external power, enhancing operational safety.

Low Maintenance and High Durability

Minimal maintenance is required for this robust industrial chuck-regular wiping and inspection ensure optimal performance. Built from high-quality alloy and permanent magnets, it offers long-term durability under continuous duty up to 80C, meeting demanding industrial requirements.

FAQ's of PERMAMAX-R Universal Pole Round Magnetic Chuck:

Q: How does the PERMAMAX-R Universal Pole Round Magnetic Chuck operate?

A: The chuck uses a manual on-off switch lever mechanism to control its permanent magnets. Simply move the lever to engage or release the magnetic clamping force, with no external electrical power required.

Q: What types of components can this magnetic chuck hold?

A: It is designed for holding small to large ferrous components during precision surface grinding, turning, and milling operations. The universal radial pole layout accommodates a wide range of workpiece sizes and shapes.

Q: When is this magnetic chuck most beneficial to use?

A: It is highly beneficial during operations that require quick, secure holding of metal parts, especially in wet grinding and machining processes on surface grinders, milling machines, and lathes.

Q: Where can the PERMAMAX-R Chuck be installed or used?

A: This round magnetic chuck is suitable for use on grinding machines, lathes, and milling machines in industrial workshops, tool rooms, and production facilities.

Q: What is the maintenance process for the magnetic chuck?

A: Maintenance is minimal; regular wiping of the surface and inspection for debris or damage is recommended. Occasional checks ensure long-lasting and trouble-free performance.

Q: What are the main benefits of using a permanent magnet chuck over an electromagnetic one?

A: Since it uses permanent magnets, the PERMAMAX-R Chuck provides continuous magnetic force without electricity, reducing operational costs, enhancing safety, and making it suitable for wet and dry machining.
