Radial Pole Round Permanent Magnetic Chuck

Name: Radial Pole Round Permanent Magnetic Chuck
Brand: Magnet Revolution Private Limited
Price: 35000.0 INR
Availability: InStock

Price 35000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Radial Pole Round Permanent Magnetic Chuck Specification

Application
Industrial

Magnet Category
Permanent Magnets

Shape
Round

Size Range
130mm (Dia)

Weight
6 Kilograms (kg)

Color
Silver

Radial Pole Round Permanent Magnetic Chuck Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
4 Pieces Per Month

Delivery Time
4 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
North America, Eastern Europe, Australia, Central America, South America, Asia, Western Europe, Middle East

Main Domestic Market
All India

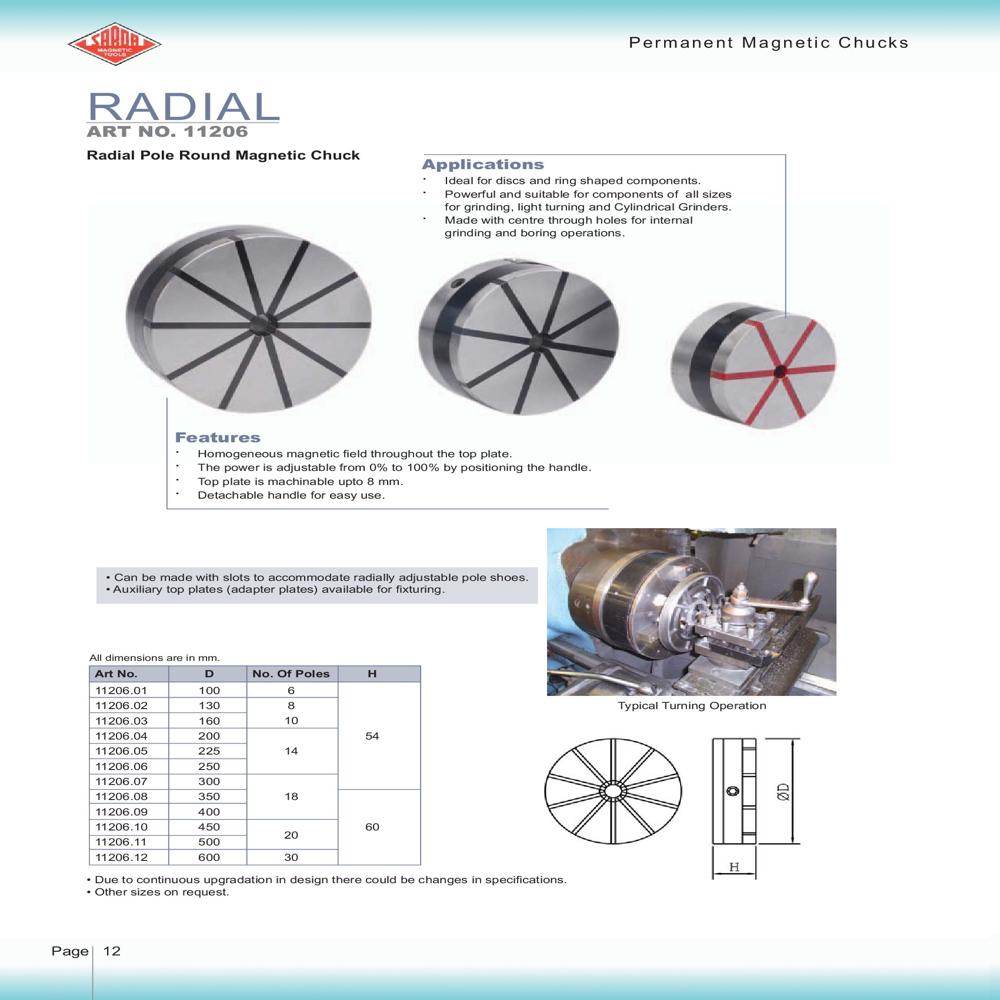

About Radial Pole Round Permanent Magnetic Chuck

The Radial Pole Round Permanent Magnetic Chuck is a high-performance industrial tool designed for precision and reliability in metalworking and machining operations. Featuring a durable round shape with a diameter of 130mm, this chuck ensures uniform magnetic force distribution for optimal clamping efficiency. Constructed with permanent magnets, it eliminates the need for external power sources, providing consistent and energy-efficient operation. The robust design is complemented by a sleek silver finish, offering both aesthetic appeal and durability. With a weight of 6 kilograms, it is compact yet sturdy enough to handle demanding industrial applications. This chuck is ideal for tasks such as grinding, turning, or milling operations, delivering precision and longevity for professional users.

Homogeneous magnetic field through out the top plate.
The power is adjustable from 0% to 100% by positing the handle.
Top plate is machinable up to 5 mm.
Detachable handle for easy use

Art No.	A	B	C (max)	D (H7)	E	F	G	H	I	Pole Min Area	No. of Poles	Self Weight
11206.02	130	57	20	50	5	M6	12		100	28	10	6
11206.03	160	57	24	50	5	M6	12	80	120	32	10	9
11206.04	200	57	30	60	5	M6	12	110	180	38	12	14
11206.06	250	70	42	80	5	M6	12	140	220	50	16	27
11206.07	300	73	42	150	6	M8	16	180	260	50	16	41
11206.08	350	73	56	170	6	M8	16	220	300	65	20	55
11206.09	400	75	56	200	8	M8	16	260	340	65	20	75
11206.11	500	81	75	200	8	M8	16	300	400	85	24	118
11206.12	600	95	100	250	8	M10	20	350	450	120	30	170
